MEET THE GRACE XC - ALL OUT PERFORMANCE
You are searching for a race ready reach between handlebar and seat post, then Grace XC will be your choice. Big dimensions, perfect balanced wall thicknesses, only possible with CNC-machining inside and outside, tested with All mountain-test standard up to 740mm handlebar width, this stem will be good company for your cross country bike and your races.
Grace XC
Cross Country / Trail Stem

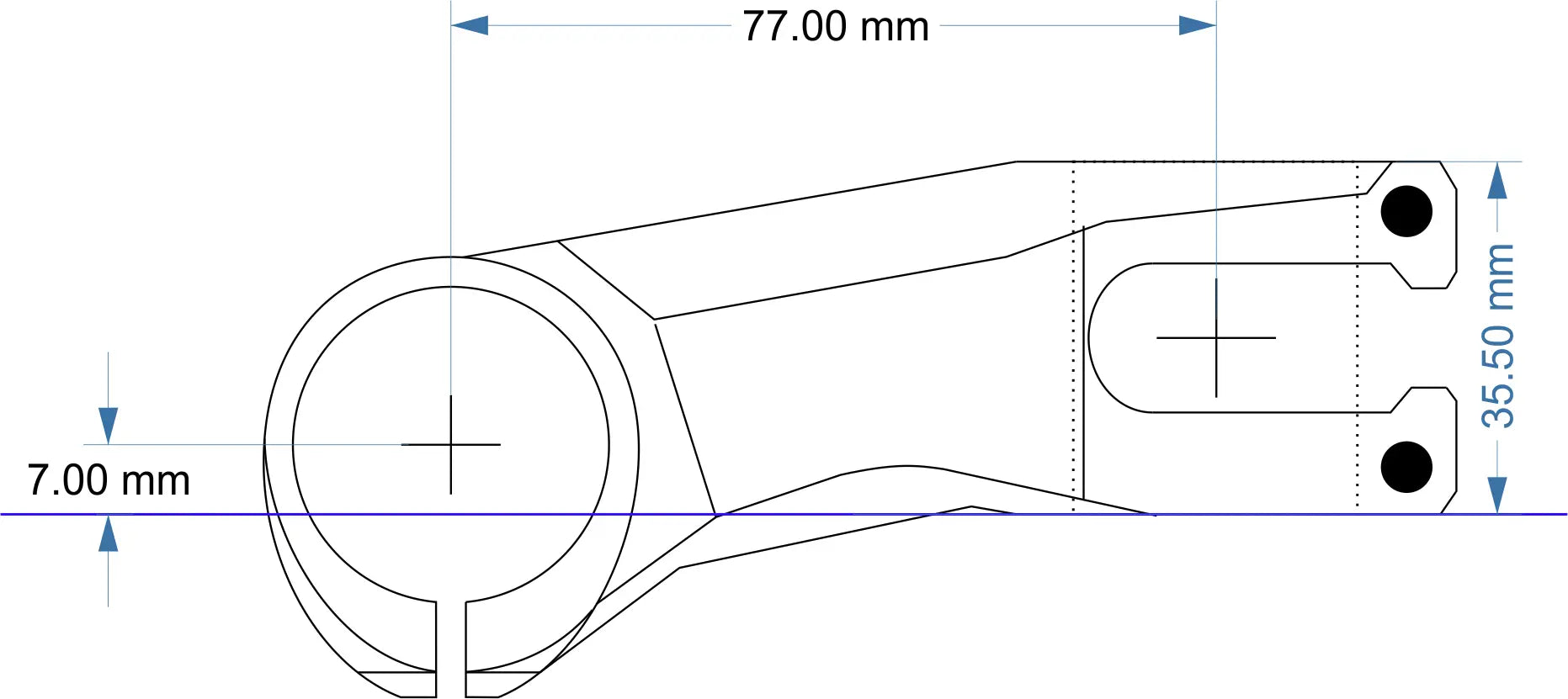

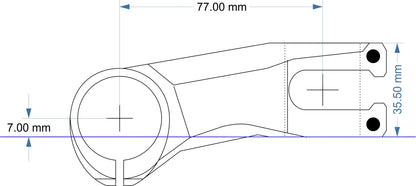

- 77mm stem length
- 31.8mm clamp diameter
- Highly optimized construction for precise steering
- Designed, engineered & tested in Freiburg / Germany
- Assembled 100% in-house and by hand – One at a time
| Ride Style |
Cross Country/ Trail |
| Weight | 78g |
| Handlebar Diameter | 31.8 mm |
| Length | 77mm |
| Stack Height | 35.5mm |
| Stack | 7mm |
|
Maximum Handelbar Rise
|
20 mm |
|
Steerer Tube Diameter
|
1 1/8″ |
|
Minimum Steerer Tube Insertion Height
|
32mm |
|
Clamping width (outside)
|
56mm |
|
Material
|
High strength alloy |
|
Bolt Material
|
Titanium |
|
Bolt Torque
|
4Nm |
|
Colour
|
Black anodized |
|
Certification Level
|
EFBE All mountain/ Trail |
